WL6950
ALUZ » A7-ZUTY-WLL

Features

Applications
Step and Path Lighting
Lamp Type
LEDs
CRI
> 95
Lens
Clear or Smoke Colored
Viewing Angle
120°
Mounting
Adhesive / Mounting Channel
Weight
0.63 lbs per foot
Construction
PVC Extrusion
Finish
Matte Black
Length
Built to Order
Listing
Dry Location Only
UL2108, CSA C22.2#9
UL8750, CSA250

Electrical

Dimming
Forward Phase, 0-10V, Lutron, DALI, DMX
Maximum Run
(Based on 5 Amps)
36’ (1.5W, 2.5W)
33’ (3.6W)
Maximum Run
(Based on 4 Amps for Class II)
36’ (1.5W, 2.5W)
26’ (3.6W)
Voltage
24VDC
Driver
Remote (Sold Separately)
Temperature Ratings
Operating / Startup: -20° to 48°C (-4° to 120°F)
Storage: -40° to 76°C (-40° to 170°F)

Series Downloads

LED Color Options

Recent Projects

Eastside Christian Church

Certifications

Related Categories

, ,

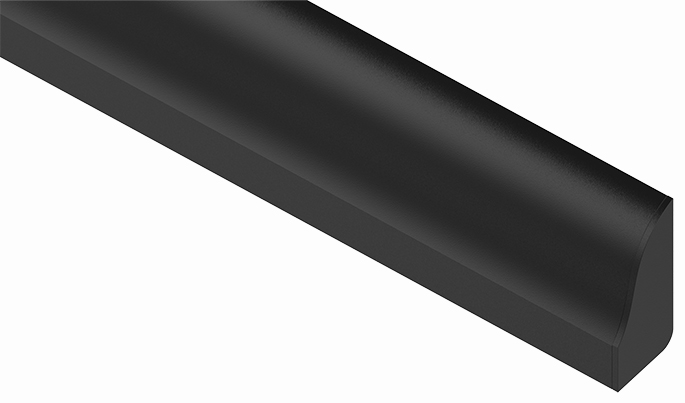

  • wallLITE WL6950 Image #01

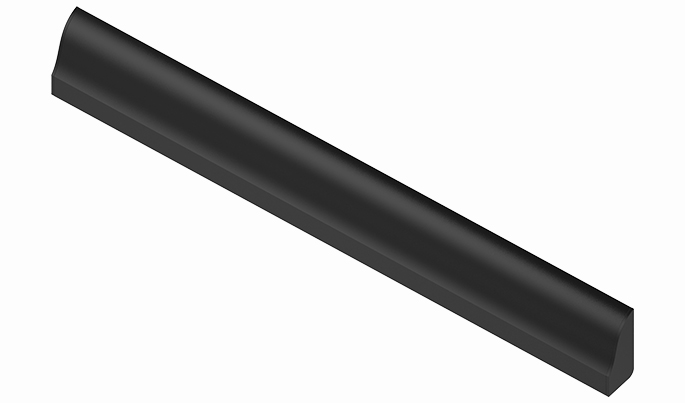

  • wallLITE WL6950 Image #02
wallLITE WL6950 Image #0101 wallLITE WL6950 Image #0202

Designed for indoor use, the wallLITE Series is ideal for many applications including the amusement, recreation, and architectural industries. wallLITE is excellent for path lighting, step lighting, and accent lighting.

wallLITE is used in: Restaurants, Casinos, Retail Stores, Shopping Malls, Hotels, Movie Theatres, and many more.
