LLED8600
ALUZ » A8-ZIZA-TAPE

Features

Applications
Accent, Decorative, Surface, Recessed, Pendant Lighting
Lamp Type
Color Changing LEDs: Red, Green, Blue, White
Viewing Angle
120°
Mounting
Mounting Channel or Mounting Clips (Sold Separately)
Weight
0.016 lbs per foot
Construction

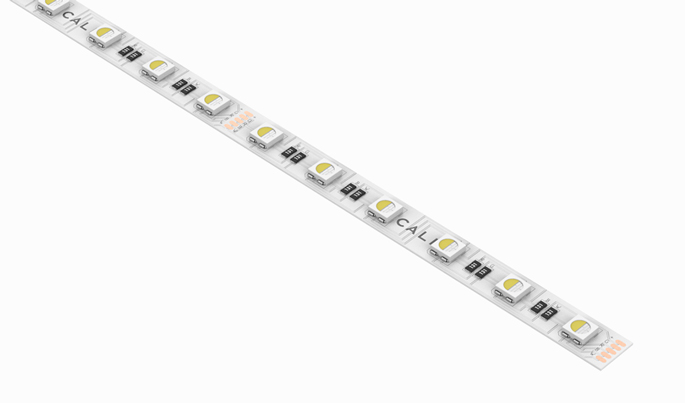

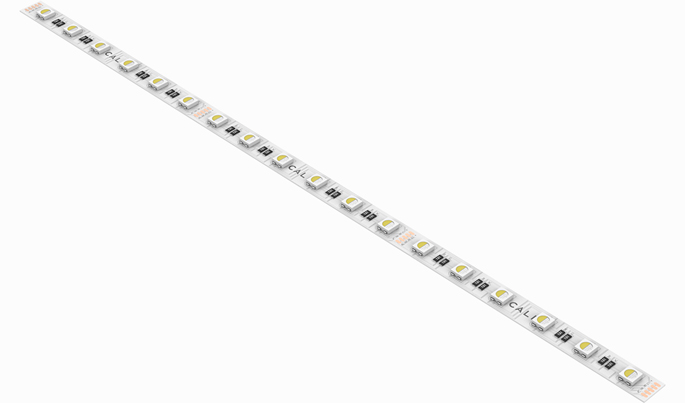

Flexible LED Tape
Length
Built to Order
Listing
Dry or Wet (IP67) Location
UL2108, CSA C22.2 #9
UL8750, CSA250

Electrical

Dimming
DMX-512
Maximum Run
Based on 5 Amps
21’ (5.5W)
26’ (4.5W)
Maximum Run
Based on 4 Amps for Class II
17’ (5.5W)
21’ (4.5W)
Voltage
24VDC
Driver
Remote (Sold Separately)
Temperature Ratings
Operating / Startup:
-20° to 48°C (-4° to 120°F)
Storage:
-40° to 76°C (-40° to 170°F)

Series Downloads

LED Color Options

Certifications

Related Categories

, , , , , ,


  • lipLEDs LLED8600 Image #01
  • lipLEDs LLED8600 Image #02
lipLEDs LLED8600 Image #0101 lipLEDs LLED8600 Image #0202

Surface Mount

Corner Mount

Pendant Mount

Glass Mount

Recess Mount

Mud-In Mount

Connectors (Click on an Option for Additional Information)

Power Connector
Dry Location
(20/5 Gauge Wire)
LLED8600-PC
(36” Standard)
LLED8600-PC-X
(X = Specify Length)
Continuous Connector
Dry Location
(20/5 Gauge Wire)
LLED8600-CC
(36” Standard)
LLED8600-CC-X
(X = Specify Length)

DMX Accessories

DMX Decoder
(DMX-RGBX)
Standard DMX Controller
(DMX-128C)
Color Wheel DMX Controller
(DMX-1024C)

Mounting Options (Click on an Option for Additional Information)

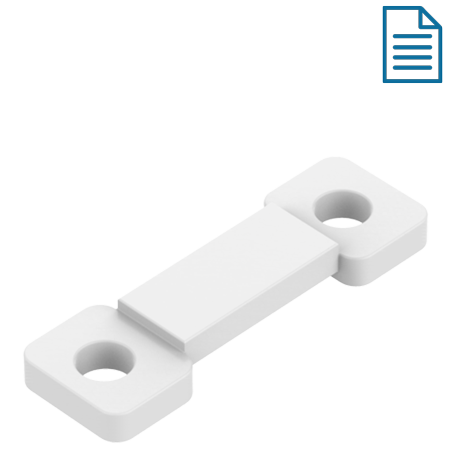

Mounting Clip (DRY)
LLED8600-MCS

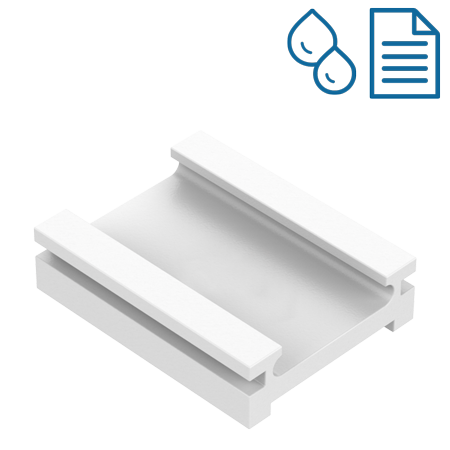

Mounting Clip (WET)
LLED8600-MCS-WET

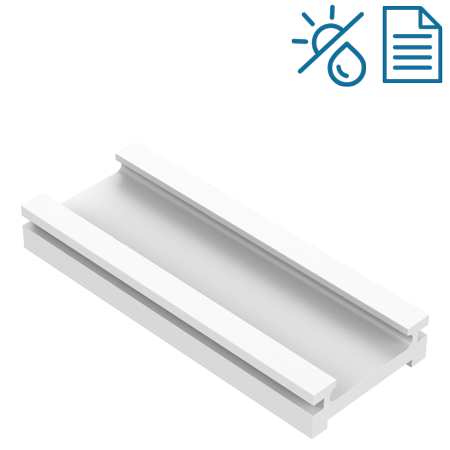

Mounting Channel (DRY or WET)
LLED8600-UC

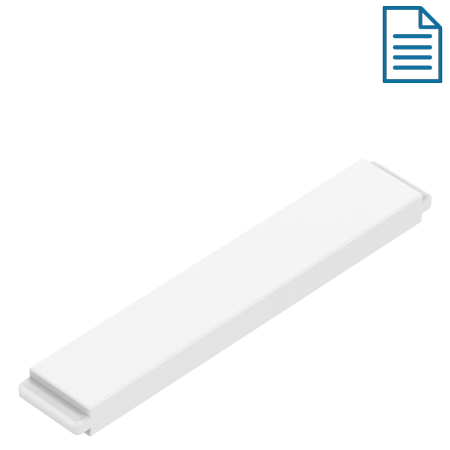

Channel Clip (DRY)
LLED8600-UC-CP
