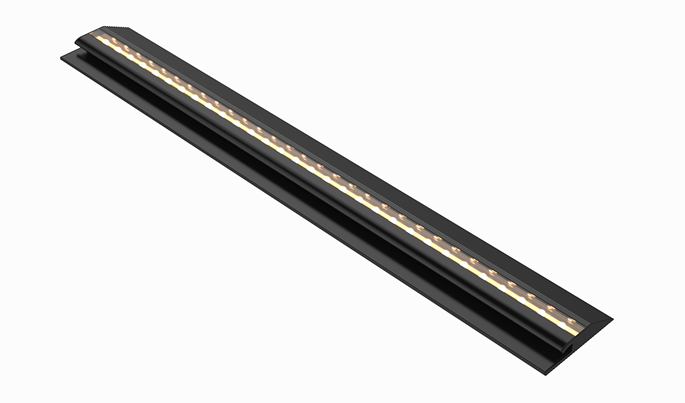

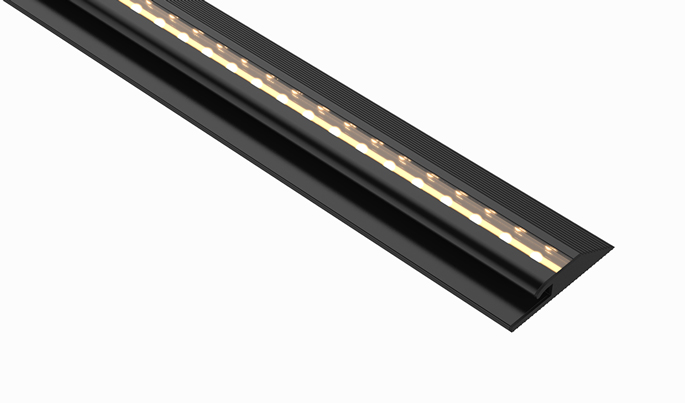

aisleLITE, Aisle Lighting, Auditorium Lighting, LED Lighting, Low Voltage (Remote Driver), Movie Theater Lighting
Designed for indoor use, aisleLite Series is ideal for many applications including the amusement, recreation, and architectural industries.
aisleLite is excellent for path lighting, aisle lighting, accent lighting, and many more applications.
aisleLITE is a 12 Volt system that requires a 12V (secondary side) transformer. The standard primary side voltage on our transformers is 120V or 277V (see transformer brochure). Consult factory for other primary side voltages.
| LAMP NUMBER | DESCRIPTION | LAMP LIFE | WATTS | MAX LAMPS | 1.5" O/C | 2" O/C | 3" O/C | 4" O/C | 6" O/C | 8" O/C | 12" O/C |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LED-3.0K | Warm White 3000K | 50,000 hrs. | 0.25 | 240 | 30´ | 40´ | 60´ | 80´ | 120´ | 160´ | 240´ |
| LED-5.0K | Cool White 5000K | 50,000 hrs. | 0.25 | 240 | 30´ | 40´ | 60´ | 80´ | 120´ | 160´ | 240´ |
| LED-R | Red | 100,000 hrs. | 0.25 | 240 | 30´ | 40´ | 60´ | 80´ | 120´ | 160´ | 240´ |
| LED-G | Green | 100,000 hrs. | 0.25 | 240 | 30´ | 40´ | 60´ | 80´ | 120´ | 160´ | 240´ |
| LED-B | Blue | 100,000 hrs. | 0.25 | 240 | 30´ | 40´ | 60´ | 80´ | 120´ | 160´ | 240´ |
| LED-A | Amber | 100,000 hrs. | 0.25 | 240 | 30´ | 40´ | 60´ | 80´ | 120´ | 160´ | 240´ |

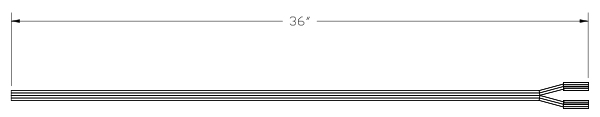

POWER CONNECTOR
(#AIL1600-PC)

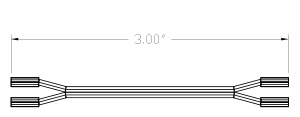

CONTINUOUS CONNECTOR
(#AIL1600-CC)
Brochure
