STL6150
ALUZ » A7-ZABA-BLT

Features

Applications
Carpeted Steps
Lamp Type
LEDs
Mounting
Adhesive
Weight
0.78 lbs per foot
Construction
Black Vinyl Extrusion
Length
Built to Order
Finish
Matte Black
Listing
Dry Location Only
UL2108, CSA C22.2#9
UL8750, CSA250

Electrical

Dimming
Forward Phase, 0-10V, Lutron, DMX, DALI
Lamp Watts
0.25W per Lamp
Maximum Lamps
(Based on 5 Amps)
432
Maximum Lamps
(Based on 4 Amps for Class II)
344
Voltage
24VDC
Wiring
Parallel
Socket
Custom
Driver
Remote (Sold Separately)
Temperature Ratings
Operating / Startup: -20° to 48°C (-4° to 120°F)
Storage: -40° to 76°C
(-40° to 170°F)

Series Downloads

LED Color Options

Recent Projects

Eastside Christian Church

Certifications

Related Categories

, , , , ,


  • stepLITE STL6150 Image #01
  • stepLITE STL6150 Image #02

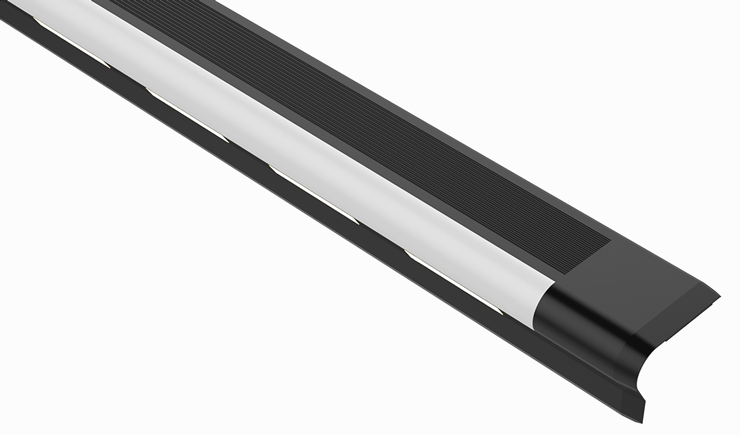

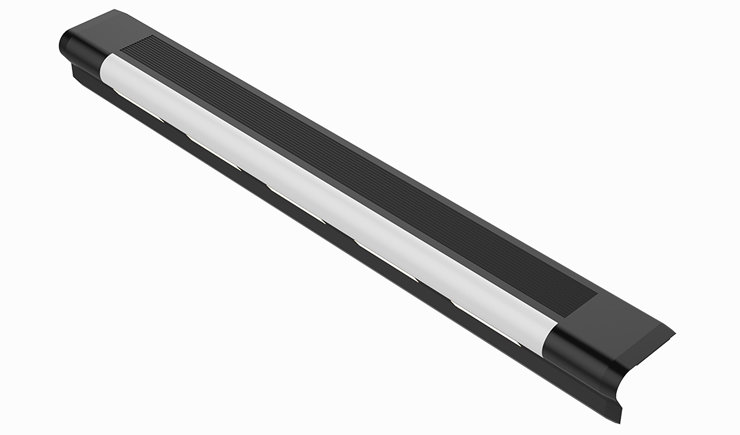

stepLITE STL6150 Image #0101 stepLITE STL6150 Image #0202

Designed for indoor use, the stepLITE Series is ideal for use in conjunction with our wallLITE System to light the treads of steps or aisles (pathways).

stepLITE can be is used in: Restaurants, Casinos, Retail Stores, Shopping Malls, Hotels, Movie Theatres, Pathway Lighting, Homes, and many more.

Accessories

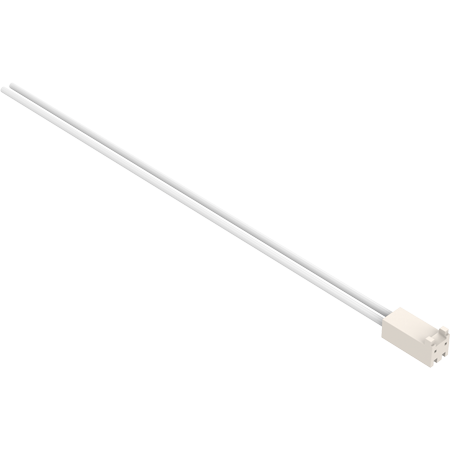

Power Connector
(20/2 Gauge Wire)
STL6150-PC
(36” Standard)
STL6150-PC-X
(X = Specify Length)

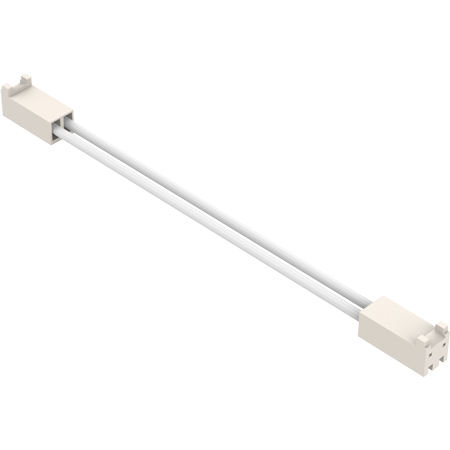

Continupus Connector
(20/2 Gauge Wire)
STL6150-CC
(3” Standard)
STL6150-CC-X
(X = Specify Length)

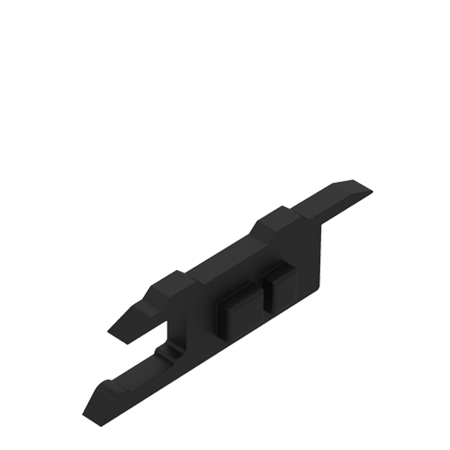

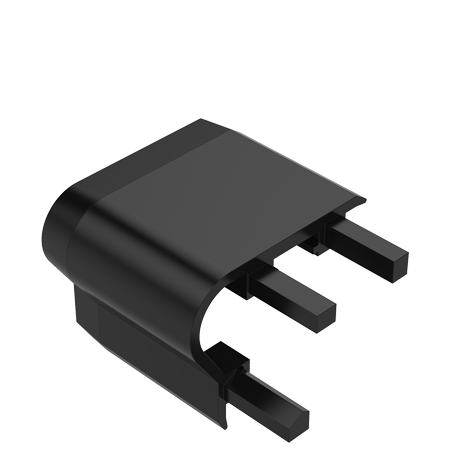

Left End Cap
(STL6150-ECL)

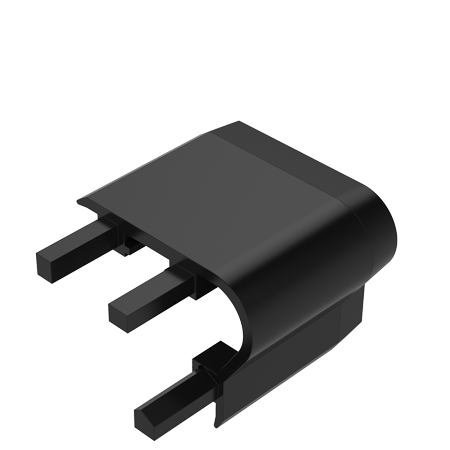

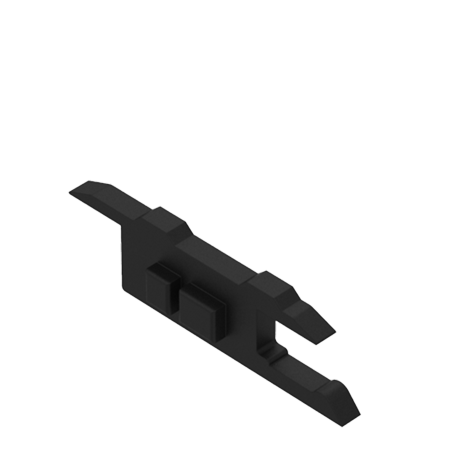

Right End Cap
(STL6150-ECR)

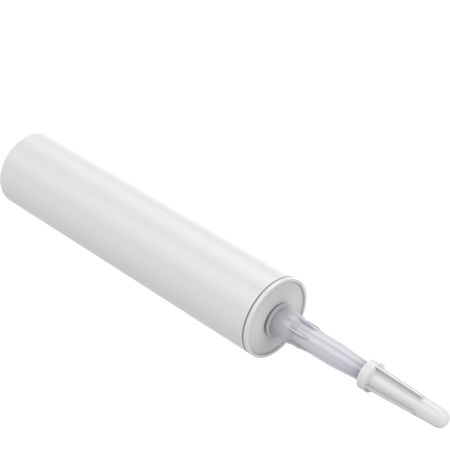

28 oz Adhesive Tube
(STL6150-AD)

aisleLITE is a 12 Volt system that requires a 12V (secondary side) transformer. The standard primary side voltage on our transformers is 120V or 277V (see transformer brochure). Consult factory for other primary side voltages.

  • Meets National Fire Protection Agency guidelines for step/aisle markings.
  • Meets ADA 4.9.3 Regulation
Power Connector
(20/2 Gauge Wire)
STL6150-PC
(36” Standard)
STL6150-PC-X
(X = Specify Length)
Continupus Connector
(20/2 Gauge Wire)
STL6150-CC
(3” Standard)
STL6150-CC-X
(X = Specify Length)
Left End Cap
(STL6150-ECL)
Right End Cap
(STL6150-ECR)
28 oz Adhesive Tube
(STL6150-AD)
