LLED8700

Applications
Accent, Decorative Lighting
Voltage
120V
Lamp Type
LEDs
Dimming
Triac
Length
Built to Order
Mounting
Mounting Clips or Mounting Channel
Efficacy
2W: 114 Lumens per foot
4W: 228 Lumens per foot
CRI
> 82
Viewing Angle
120 Degrees
Viewing Angle
120 Degrees
LED Life
50,000 hrs.
Maximum Run
80’ (PC-4AMP)
30’ (PC-1.6AMP)
Listing
Dry/Damp or Wet Location
UL2108, CSA C22.2#9
UL8750, CSA250

Series Downloads

LED Color Options

Control

Certifications

Related Categories

, , , , , ,

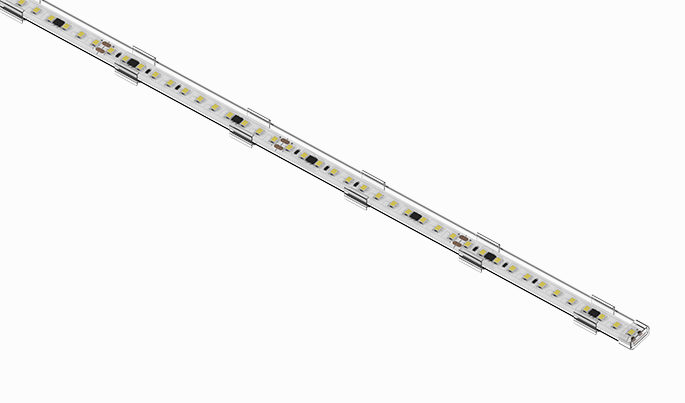

  • lipLEDs LLED8700 Image #01

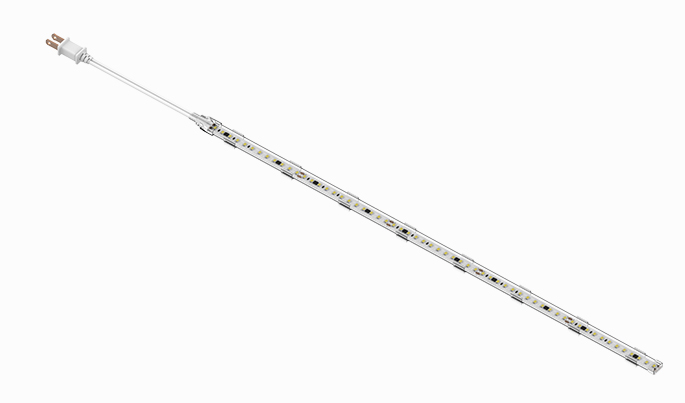

  • lipLEDs LLED8700 Image #02
lipLEDs LLED8700 Image #0101 lipLEDs LLED8700 Image #0202


Click on Quick Link Image for Type of Mounting

Description

alumLITE is available with 120 or 277 volt remote drivers. Add “DM” after watts per foot for dimming (8WDM).

Consult factory for dimming protocols to verify compatibility with dimming controls.

Surface Mount Channels (Click on a Channel for Additional Information)

Recess Mount Channels (Click on a Channel for Additional Information)

Corner Mount Channels (Click on a Channel for Additional Information)
