LLED8200-WMC

Features

Applications
Accent, Decorative, Surface, Recessed, Pendant Lighting
Lamp Type
LEDs
CRI
> 90
Lens
Clear, 50% Semi-Frosted, or 100% Frosted
Viewing Angle
120°
Mounting
Mounting Clips (Sold Separately)
Weight
0.285 lbs per foot
Construction
Aluminum Extrusion
Length
Built to Order
Listing
Dry, Wet, or IP67 Location
UL2108, CSA C22.2 #9
UL8750, CSA250

Electrical

Dimming
Forward Phase, 0-10V, Lutron, DALI
Maximum Run
Based on 5 Amps
20’ (6W), 30’ (4W), 36’ (3W, 2W)
Maximum Run
Based on 4 Amps for Class II
14’ (6W), 24’ (4W), 32’ (3W), 36’ (2W)
Voltage
24VDC
Driver
Remote (Sold Separately)
Temperature Ratings
Operating / Startup: -20° to 48°C (-4° to 120°F)
Storage: -40° to 76°C (-40° to 170°F)

Series Downloads

LED Color Options

Control

Certifications

Related Categories

, , , , , , , , , , , , , ,


  • lipLEDs LLED8200-WMC Image #01

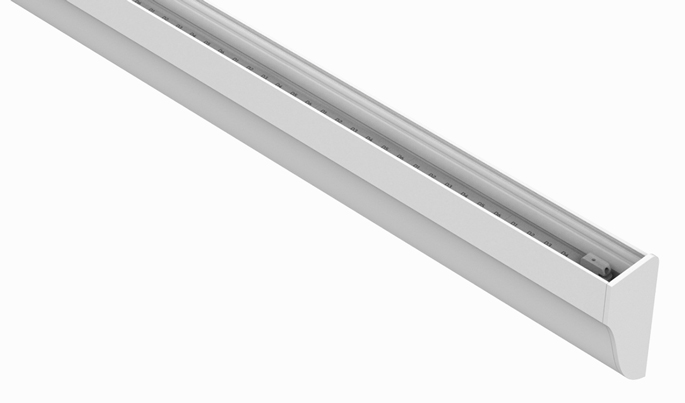

  • lipLEDs LLED8200-WMC Image #02
lipLEDs LLED8200-WMC Image #0101 lipLEDs LLED8200-WMC Image #0202

Designed for indoor or outdoor use, the lipLEDs Series is ideal for many applications including the amusement, recreation, and architectural industries. lipLEDs are excellent for decorative lighting, accent lighting, path lighting, and many more applications.

lipLEDs are used in: Restaurants, Casinos, Retail Stores, Shopping Malls, Hotels, Movie Theatres, and many more.

Lens

Clear Lens
Visible Diode Image
(CL)
50% Semi-Frosted Lens
Slight Diode Image
(SF)
100% Frosted Lens
No Diode Image
(Line of Light)
(F)

Mounting Clips (Click on an Option for Additional Information)

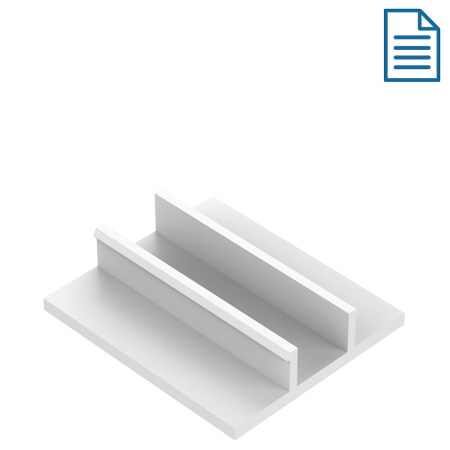

Mounting Clip
LLED8200-WMC-MC

Mounting Clips (Click on an Option for Additional Information)

Mounting Clip
LLED8200-WMC-MC

Lens

Clear
Semi-Frosted
Frosted
