LLED8200-SQL

Features

Applications
Accent, Decorative, Surface, Recessed, Pendant Lighting
Lamp Type
LEDs
CRI
> 90
Lens
Clear, 50% Semi-Frosted, or 100% Frosted
Viewing Angle
120°
Mounting

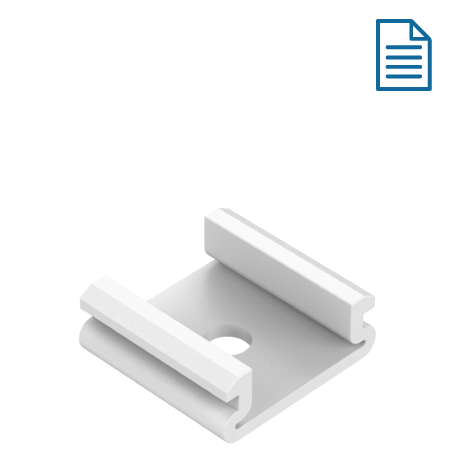

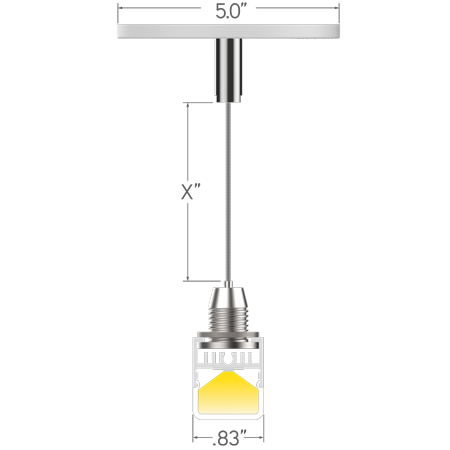

Mounting Channel, Clips, or Pendant (Sold Separately)
Weight
0.195 lbs per foot
Construction
Aluminum Extrusion
Length
Built to Order
Listing
Dry, Wet, or IP67 Location
UL2108, CSA C22.2 #9
UL8750, CSA250

Electrical

Dimming
Forward Phase, 0-10V, Lutron, DALI
Maximum Run
Based on 5 Amps
20’ (6W), 30’ (4W), 36’ (3W, 2W)
Maximum Run
Based on 4 Amps for Class II
14’ (6W), 24’ (4W), 32’ (3W), 36’ (2W)
Voltage
24VDC
Driver
Remote (Sold Separately)
Temperature Ratings
Operating / Startup: -20° to 48°C (-4° to 120°F)
Storage: -40° to 76°C (-40° to 170°F)

Series Downloads

LED Color Options

Control

Certifications

Related Categories

, , , , , , , , , , , , , ,

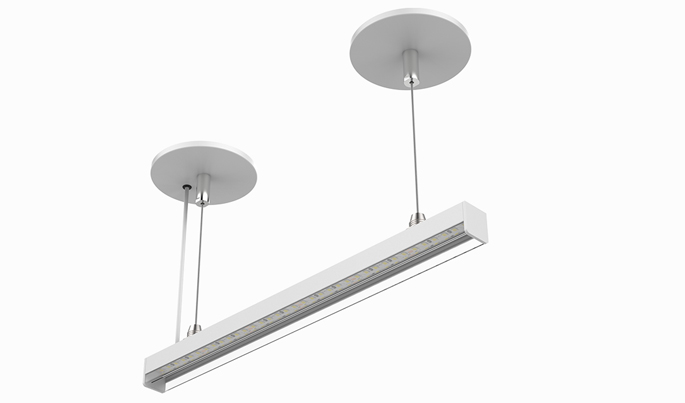

  • lipLEDs LLED8200-SQL Image #01

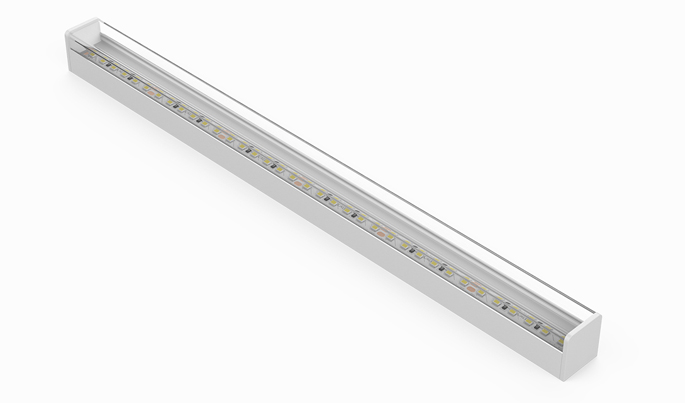

  • lipLEDs LLED8200-SQL Image #02
lipLEDs LLED8200-SQL Image #0101 lipLEDs LLED8200-SQL Image #0202

Designed for indoor or outdoor use, the lipLEDs Series is ideal for many applications including the amusement, recreation, and architectural industries. lipLEDs are excellent for decorative lighting, accent lighting, path lighting, and many more applications.

lipLEDs are used in: Restaurants, Casinos, Retail Stores, Shopping Malls, Hotels, Movie Theatres, and many more.

Lens

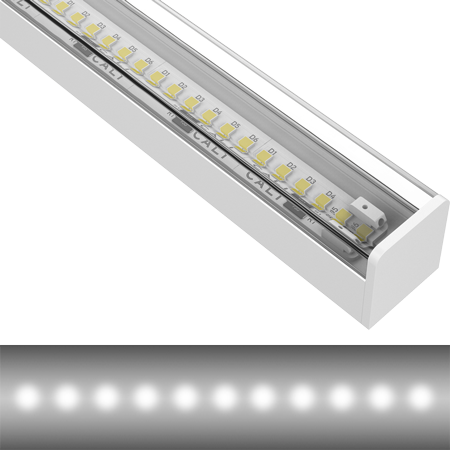

Clear Lens
Visible Diode Image
(CL)

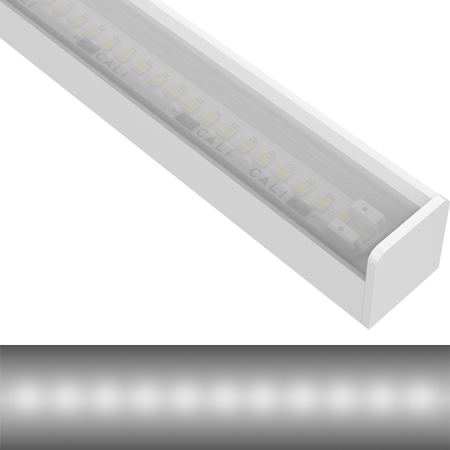

50% Semi-Frosted Lens
Slight Visible Diode Image
(SF)

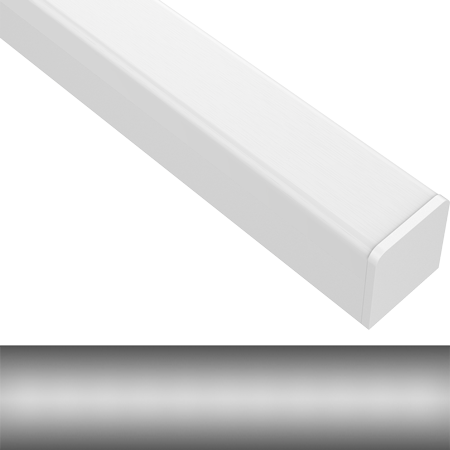

100% Frosted Lens
No Diode Image
(Line of Light)
(F)

Power Connectors required to provide power for each run (Click on an Option for Soldering Instructions)

Power Connector
(#LLED8000-PC)
Power Connector
White Jacket
(#LLED80000-PC-W)
Power Connector
Black Jacket
(#LLED8000-PC-B)

Continuous Connectors to go around corners or connect two continuous runs
(Click on an Option for Soldering Instructions)

Power Connector
(#LLED8000-PC)
Continuous Connector
White Jacket
(#LLED80000-CC-W)
Continuous Connector
Black Jacket
(#LLED8000-CC-B)

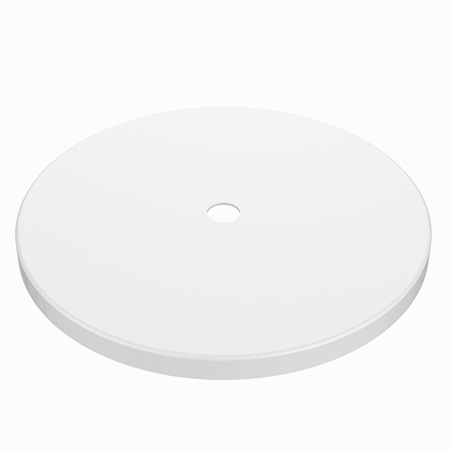

Ceiling Canopy

Power Connectors required to provide power for each run (Click on an Option for Soldering Instructions)

Power Connector
(#LLED8000-PC)
Power Connector
White Jacket
(#LLED80000-PC-W)
Power Connector
Black Jacket
(#LLED8000-PC-B)

Continuous Connectors to go around corners or connect two continuous runs
(Click on an Option for Soldering Instructions)

Power Connector
(#LLED8000-PC)
Continuous Connector
White Jacket
(#LLED80000-CC-W)
Continuous Connector
Black Jacket
(#LLED8000-CC-B)

Ceiling Canopy

Lens

Clear
Semi-Frosted
Frosted
