LLED8200-SQC

Applications
Accent, Decorative Lighting
Voltage
24VDC
Lamp Type
Modular LEDs
Dimming
Forward Phase
0-10V
Lutron
Length
Built to Order
Construction
LED Modules (Field Cuttable - Dry Location Only)
Mounting
Mounting Clips or Mounting Channel
CRI
> 90
Efficacy
108 Lumens per Watt
Viewing Angle
120 Degrees
L70 LED Life
60,000 hrs.
Maximum Run
20’ (6W), 30’ (4W), 36’ (3W, 2W)
Listing
Dry or Wet (IP65 or IP67) Location
UL2108, CSA C22.2 #9
UL8750, CSA250

Series Downloads

LED Color Options

Control

Certifications

Related Categories

, , , , , , , , , , , , , ,


  • lipLEDs LLED8200-SQC Image #01

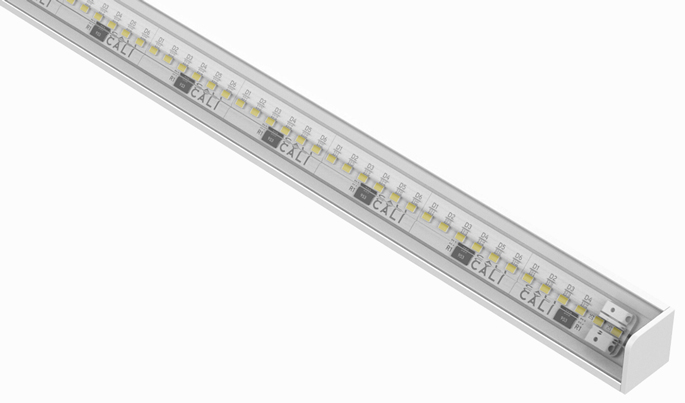

  • lipLEDs LLED8200-SQC Image #02
lipLEDs LLED8200-SQC Image #0101 lipLEDs LLED8200-SQC Image #0202

Description

Designed for indoor or outdoor use, the lipLEDs Series is ideal for many applications including the amusement, recreation, and architectural industries. lipLEDs are excellent for decorative lighting, accent lighting, path lighting, and many more applications.

lipLEDs are used in: Restaurants, Casinos, Retail Stores, Shopping Malls, Hotels, Movie Theatres, and many more.

Lens

Clear
Semi-Frosted
Frosted

Standard Color Finishes

Natural Silver
Polished
White
Satin
Black
Green
Red
Silver

Power Connectors required to provide power for each run (Click on an Option for Soldering Instructions)

Power Connector
(#LLED8000-PC)
Power Connector
White Jacket
(#LLED80000-PC-W)
Power Connector
Black Jacket
(#LLED8000-PC-B)

Continuous Connectors to go around corners or connect two continuous runs (Click on an Option for Soldering Instructions)

Power Connector
(#LLED8000-PC)
Continuous Connector
White Jacket
(#LLED80000-CC-W)
Continuous Connector
Black Jacket
(#LLED8000-CC-B)

Mounting Clips (Click on an Option for Additional Information)

Mounting Clip
LLED8200-SQC-MC
