LLED8050-WRCR

Features

Applications
Accent, Decorative, Surface, Recessed, Pendant Lighting
Lamp Type
LEDs
CRI
>95
Lens
Clear, 50% Semi-Frosted, or 100% Frosted
Viewing Angle
120°
Mounting
Mounting Channel
Weight
0.275 lbs per foot
Construction
Aluminum Extrusion
Length
Built to Order
Listing
Dry Location
UL2108, CSA C22.2 #9
UL8750, CSA250

Electrical

Dimming
Forward Phase, 0-10V, Lutron, DALI
Maximum Run
(Based on 5 amps)
9’ (13W), 10’ (11W), 13’ (9W), 17’ (7W), 24’ (5W), 36’ (3W)
Maximum Run
(Based on 4 amps)
7’ (13W), 8’ (11W), 10’ (9W), 13’ (7W), 19’ (5W), 31’ (3W)
Voltage
24VDC
Driver
Remote (Sold Separately)
Temperature Ratings
Operating / Startup: -20° to 48°C (-4° to 120°F)
Storage: -40° to 76°C (-40° to 170°F)

Series Downloads

LED Color Options

Control

Certifications

Related Categories

, , , , , , , , , , , , , ,

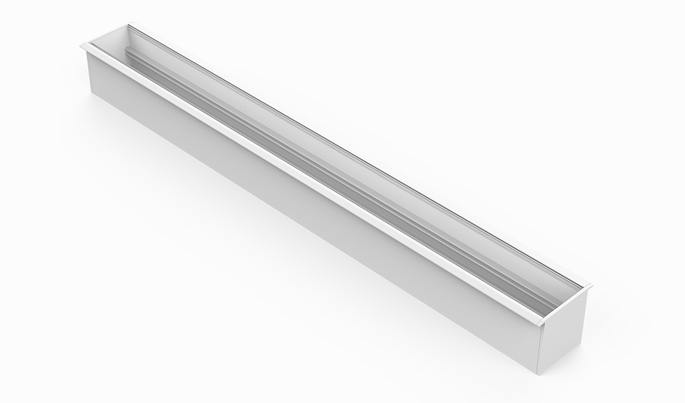

  • lipLEDs LLED8050-WRCR Image #01

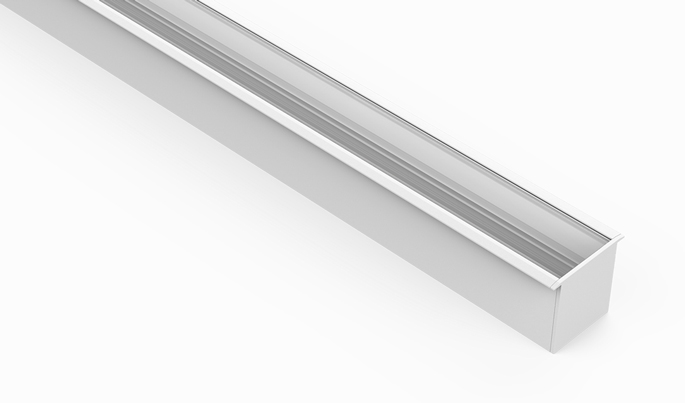

  • lipLEDs LLED8050-WRCR Image #02
lipLEDs LLED8050-WRCR Image #0101 lipLEDs LLED8050-WRCR Image #0202

Designed for indoor or outdoor use, the lipLEDs Series is ideal for many applications including the amusement, recreation, and architectural industries. lipLEDs are excellent for decorative lighting, accent lighting, path lighting, and many more applications.

lipLEDs are used in: Restaurants, Casinos, Retail Stores, Shopping Malls, Hotels, Movie Theatres, and many more.

Lens

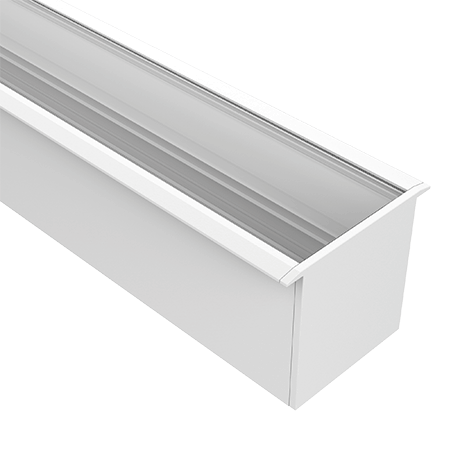

Clear Lens
Visible Diode Image
(CL)

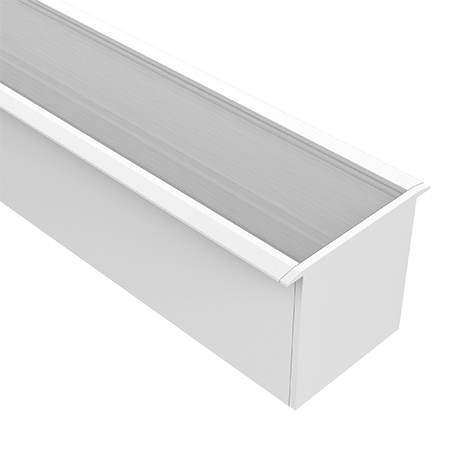

50% Semi-Frosted Lens
Slight Diode Image
(SF)

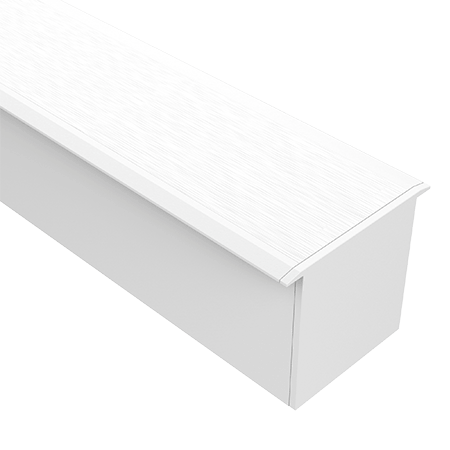

100% Frosted Lens
No Diode Image
(Line of Light)
(F)

Mounting Clips (Click on an Option for Additional Information)

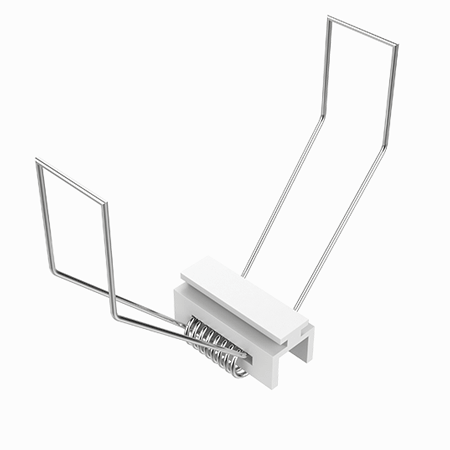

Spring Loaded Mounting Clip
LLED8050-SPR-MC

Mounting Clips (Click on an Option for Additional Information)

Spring Loaded Mounting Clip
LLED8050-SPR-MC

Lens

Clear Lens
Visible Diode Image
(CL)
50% Semi-Frosted Lens
Slight Diode Image
(SF)
100% Frosted Lens
No Diode Image
(Line of Light)
(F)
