LLED8000-MW

Features

Applications
Mud-In, Accent, Decorative, Surface, Recessed Lighting
Lamp Type
LEDs
CRI
> 95
Lens
50% Semi-Frosted or 100% Frosted
Viewing Angle
120°
Mounting
Mud-In
Weight
0.81 lbs per foot
Construction
Aluminum Extrusion
Length
Built to Order
Listing
Dry or Damp Location
UL2108, CSA C22.2 #9
UL8750, CSA250

Electrical

Dimming
Forward Phase, 0-10V, Lutron, DALI
Maximum Run
(Based on 4 Amps for Class II)
14’ (6.5W), 17’ (5.5W), 21’ (4.5W),
26’ (3.6W), 36’ (1.5W, 2.5W)
Voltage
24VDC
Driver
Remote (Sold Separately)
Temperature Ratings
Operating / Startup: -20° to 48°C (-4° to 120°F)
Storage: -40° to 76°C (-40° to 170°F)

Series Downloads

LED Color Options

Control

Certifications

Related Categories

, , , , , , , , , , , , , ,

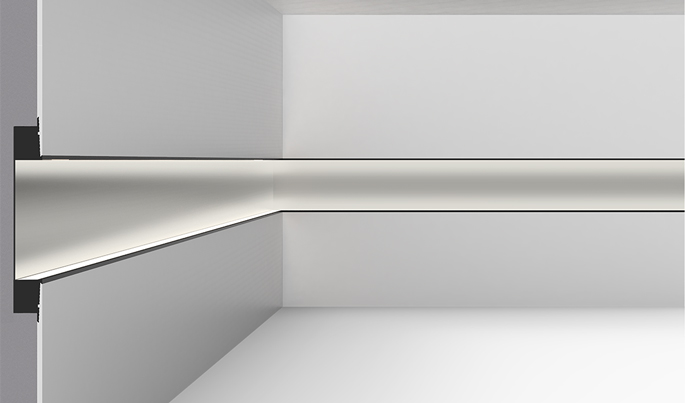

  • lipLEDs LLED8000-MW Image #01
  • lipLEDs LLED8000-MW Image #02
lipLEDs LLED8000-MW Image #0101 lipLEDs LLED8000-MW Image #0202

Designed for indoor or outdoor use, the lipLEDs Series is ideal for many applications including the amusement, recreation, and architectural industries. lipLEDs are excellent for decorative lighting, accent lighting, path lighting, and many more applications.

lipLEDs are used in: Restaurants, Casinos, Retail Stores, Shopping Malls, Hotels, Movie Theatres, and many more.

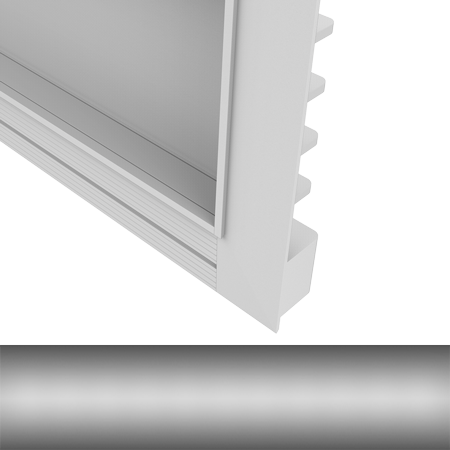

Lens

50% Semi-Frosted Lens
Slight Diode Image
(SF)
100% Frosted Lens
No Diode Image
(Line of Light)
(F)

Dry Location Power Connectors (Click on an Option for Soldering Instructions)

Power Connector
(20/2 Gauge Plenum Rated Wire)
LLED8000-PC-PLM-X
(X = Specify Length, 36” Standard)

Dry Location Power Connectors (Click on an Option for Soldering Instructions)

Power Connector
(20/2 Gauge Plenum Rated Wire)
LLED8000-PC-PLM-X
(X = Specify Length, 36” Standard)

Lens

50% Semi-Frosted Lens
Slight Diode Visability
(SF)
100% Frosted Lens
No Diode Visability
(Line of Light)
(F)
