LLED8000-CMC

Features

Applications
Accent, Decorative, Surface, Recessed, Pendant Lighting
Lamp Type
LEDs
CRI
>95
Lens
Clear, 50% Semi-Frosted, or 100% Frosted
Viewing Angle
120°
Mounting
Mounting Channel or Mounting Clips (Sold Separately)
Weight
0.241 lbs per foot
Construction
Aluminum Extrusion
Length
Built to Order
Listing
Dry, Wet, or IP67 Location
UL2108, CSA C22.2#9
UL8750, CSA250

Electrical

Dimming
Forward Phase, 0-10V, Lutron, DALI
Maximum Run
18' (6.5W), 21' (5.5W), 26' (4.5W),
33' (3.6W), 36 '(1.5W, 2.5W)
Maximum Run
14' (6.5W), 17' (5.5W), 21' (4.5W),
26' (3.6W), 36 '(1.5W, 2.5W)
Voltage
24VDC
Driver
Remote (Sold Separately)
Temperature Ratings
Operating / Startup: -20° to 48°C (-4° to 120°F)
Storage: -40° to 76°C (-40° to 170°F)

Series Downloads

LED Color Options

Recent Projects

19000 Macarthur

Control

Certifications

Related Categories

, , , , , , , , , , , , , ,

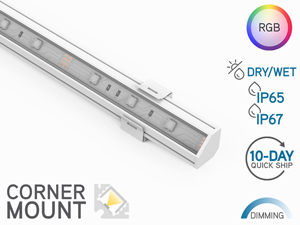

  • lipLEDs LLED8000-CMC Image #01
  • lipLEDs LLED8000-CMC Image #02
lipLEDs LLED8000-CMC Image #0101 lipLEDs LLED8000-CMC Image #0202

Designed for indoor or outdoor use, the lipLEDs Series is ideal for many applications including the amusement, recreation, and architectural industries. lipLEDs are excellent for decorative lighting, accent lighting, path lighting, and many more applications.

lipLEDs are used in: Restaurants, Casinos, Retail Stores, Shopping Malls, Hotels, Movie Theatres, and many more.

Lens

Clear Lens
Visible Diode Image
(CL)
50% Semi-Frosted Lens
Slight Diode Image
(SF)
100% Frosted Lens
No Diode Image
(Line of Light) (F)

Connectors (Click on an Option for Additional Information)

Power Connector
Dry Location
LLED8000-PC
(33” Standard)
LLED8000-PC-X
(X = Specify Length)
Continuous Connector
LLED8000-CC
(3” Standard)
LLED8000-CC-X
(X = Specify Length)

Wet Location Connector (Click on an Option for Soldering Instructions)

Wet Splice Connector
LLED8000-SC-WET

Mounting Options (Click on an Option for Additional Information)

Mounting Clip 1
LLED8000-CMC-MC-1
Mounting Clip 2
LLED8000-CMC-MC-2
Mounting Clip 3 (Adjustable)
LLED8000-CMC-MC-3
Mounting Clip 4
LLED8000-CMC-MC-4-X
(X = Specify Length)
Adjustable Mounting Clip
LLED8000-CMC-MC-ADJ

Connectors (Click on an Option for Additional Information)

Power Connector
Dry Location
LLED8000-PC
(33” Standard)
LLED8000-PC-X
(X = Specify Length)
Continuous Connector
LLED8000-CC
(3” Standard)
LLED8000-CC-X
(X = Specify Length)

Wet Location Connector (Click on an Option for Soldering Instructions)

Wet Splice Connector
LLED8000-SC-WET

Mounting Options (Click on an Option for Additional Information)

Mounting Clip
LLED8000-CMC-MC-1
Mounting Clip
LLED8000-CMC-MC-2
Mounting Clip
LLED8000-CMC-MC-3
(Adjustable)
Mounting Clip
LLED8000-CMC-MC-4-X
(X = Specify Length: Max. 2’)
Adjustable Mounting Clip
LLED8000-CMC-MC-ADJ

Lens

Clear Lens Visible Diode (CL)
50% Semi-Frosted Lens Slight Diode Image (SF)
100% Frosted Lens
No Diode Image
(Line of Light) (F)
