ALS450T

Features

Applications
Wall Washing Lighting
Lamp Type
High Output LEDs (No Mercury)
CRI
>90
Lens
Clear, Frosted, or Semi-Frosted
Optics & Asymmetric
10°, 15°, 25°, 30°, 45°, 60° and Asymmetric Optics
Length
Built to Order
Construction
Aluminum Extrusion
Weight
1.61 lbs per foot
Mounting
Mounting Clips (Not Included)
Listing
Dry or Wet (IP65 or IP67) Location
UL1598, CSA C22.2#250.0
UL8750, CSA250
UL2108, CSA C22.2 #9

Electrical

Dimming
0-10V, Forward Phase, DALI
MAXIMUM RUN
(Line Voltage Integral Drivers)
40’ (3W, 6W), 35 (9W), 26' (12W), 21' (15W), 17' (18W)
Primary Voltage
120V or 277V
Secondary Voltage
24VDC
Temperature Ratings
Operating / Startup: -20° to 48°C (-4° to 120°F)
Storage: -40° to 76°C (-40° to 170°F)

Series Downloads

LED Color Options

Standard Color Finishes

Recent Projects

The Outlets at Orange
Alo Yoga
Logan Airport - Terminal B

Certifications

Related Categories

, , , , ,

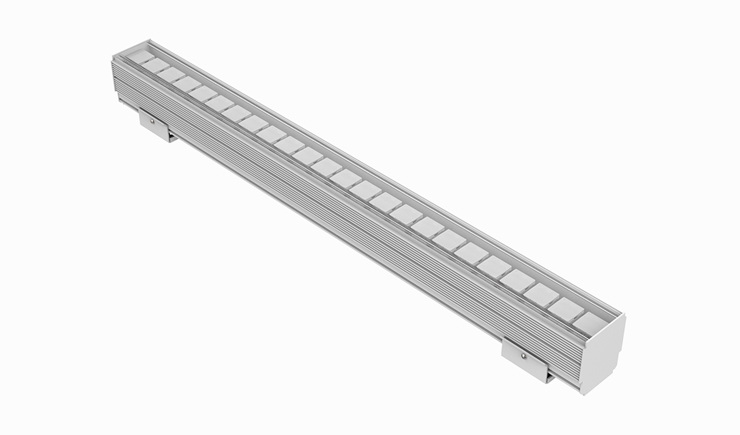

  • alumLEDs ALS450T Image #01
  • alumLEDs ALS450T Image #02
alumLEDs ALS450T Image #0101 alumLEDs ALS450T Image #0202

Designed for indoor or outdoor use, alumLEDs is ideal for many applications including the amusement, recreation, and architectural industries. alumLEDs is excellent for cove lighting, undercabinet lighting, accent lighting, and many more applications.

End Views

ALS450T-EV

Lens

Clear Lens
Visible Diode
(CL)

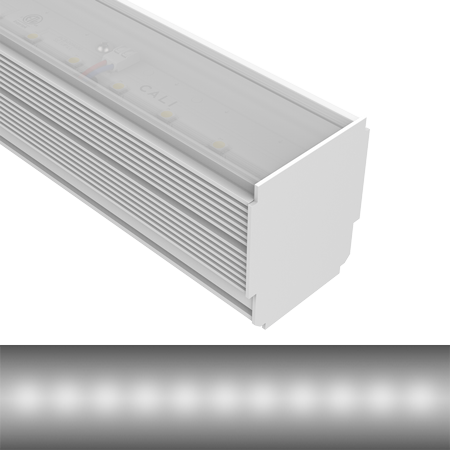

50% Semi-Frosted Lens
Slight Diode Visability
(SF)

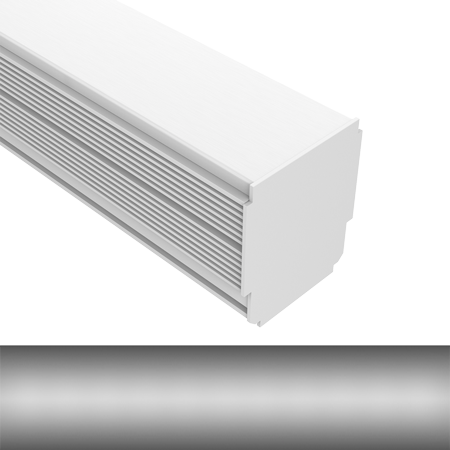

100% Frosted Lens
No Diode Visability
(F)
Optic or Asymmetric Lens
Visible Diode
(15D, 30D, 45D, 60D, ASM)

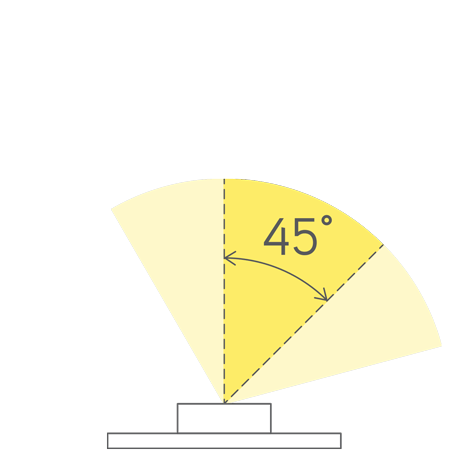

Beam Angles

120° x 120° Beam
Clear Lens (CL)
Semi-Frosted Lens (SF)
Frosted Kens (F)
45° x 60° Beam
Asymmetric Lens
(ASM)
15° x 60° Beam
Optic Lens
(15D)
30° x 60° Beam
Optic Lens
(30D)
45° x 60° Beam
Optic Lens
(45D)
60° x 60° Beam
Optic Lens
(60D)

Connectors

Standard Jumper Cable
(ALS450T-JC-6")
Jumper Cable
(ALS450T-JC-X)
(X = Specify Length)

Mounting Clips (Click on an Option for Additional Information)

ALS450T-MC-1
ALS450T-MC-2
ALS450T-MC-3
(Adjustable)
ALS450T-MC-4-X
X=Specify Length, Max. 2'

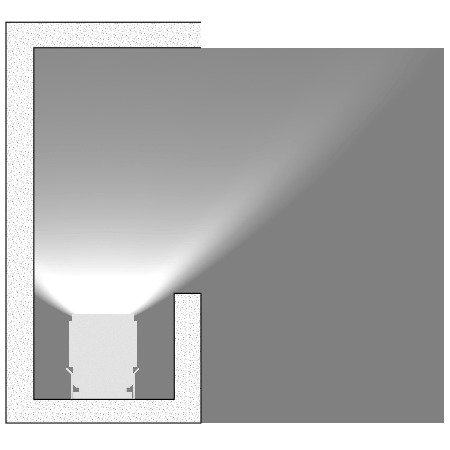

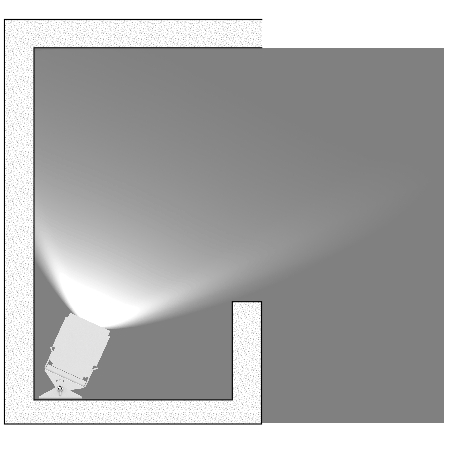

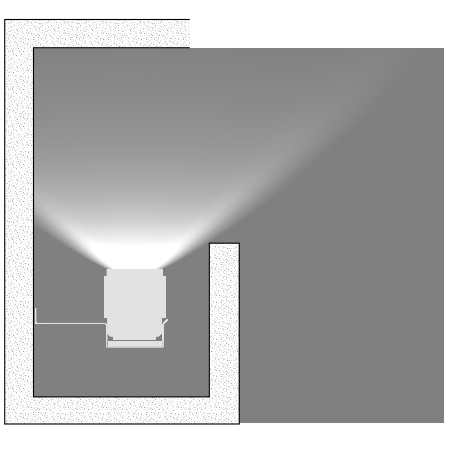

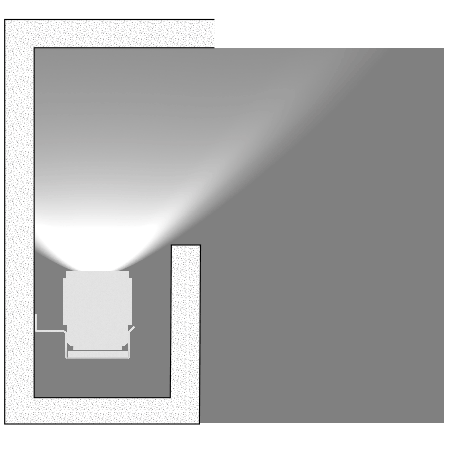

Mounting Cove Guidelines (Click on an Option for Additional Information)

ALS450T-MC-1
ALS450T-MC-2
ALS450T-MC-3
(Adjustable)
ALS450T-MC-4-X
X=Specify Length

Connectors

Standard Jumper Cable
(ALS450T-JC-6")
Jumper Cable
(ALS450T-JC-X)
(X = Specify Length)

Mounting Clips (Click on an Option for Additional Information)

ALS450T-MC-1
ALS450T-MC-2
ALS450T-MC-3
(Adjustable)
ALS450T-MC-4-X
X=Specify Length, Max. 2'

Lens

Clear Lens
Visible Diode
(CL)
50% Semi-Frosted Lens
Slight Diode Visability
(SF)
100% Frosted Lens
No Diode Visability
(F)
Optic or Asymmetric Lens
Visible Diode
(15D, 30D, 45D, 60D, ASM)

Beam Angles

120° x 120° Beam
Clear Lens (CL)
Semi-Frosted Lens (SF)
Frosted Kens (F)
45° x 60° Beam
Asymmetric Lens
(ASM)
15° x 60° Beam
Optic Lens
(15D)
30° x 60° Beam
Optic Lens
(30D)
45° x 60° Beam
Optic Lens
(45D)
60° x 60° Beam
Optic Lens
(60D)

Mounting Cove Guidelines (Click on an Option for Additional Information)

ALS450T-MC-1
ALS450T-MC-2
ALS450T-MC-3
(Adjustable)
ALS450T-MC-4-X
X=Specify Length
